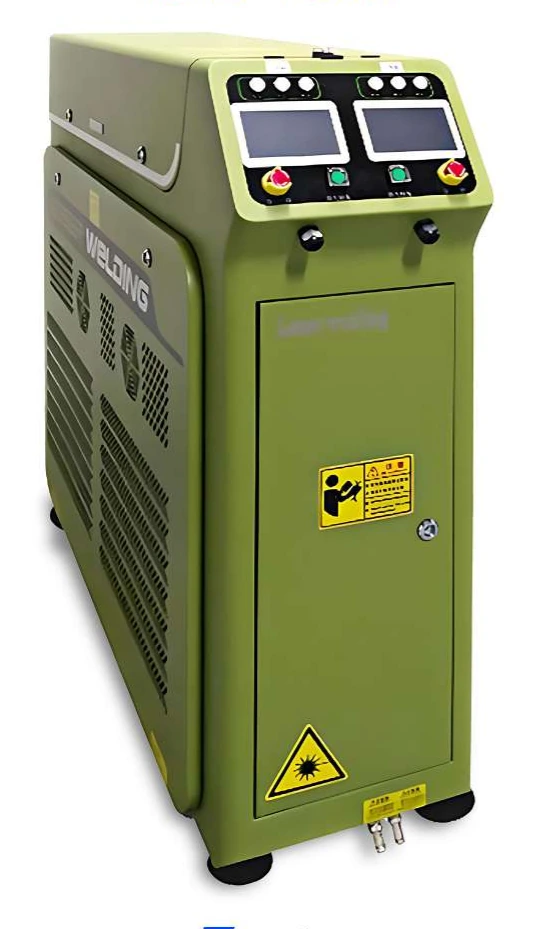

What the YAG-150W is built to do
The YAG-150W is a yag chain welding source in the chain welding machines range. A 150 W YAG chain welding source for higher-throughput inline link welding.
An inline welding source sits alongside the chain machine and fuses every link as it is formed. Compared with a solder-powder joint, a welded link keeps the parent alloy at the joint, which matters for both strength and for colour matching on finished chain.
This unit delivers 40 J at 1–100 Hz with built-in cooling. The trade-off between YAG and QCW fiber sources — single-pulse energy against heat input and running cost — is covered in the gold chain production line guide.
Capability in practice
The figures below are the ones that decide whether this machine suits a given job. The full table is in the specifications section above.
| Parameter | YAG-150W | What it decides |
|---|---|---|
| Laser power | 150 W | Sets the section thickness that can be fused in a single pulse. |
| Pulse energy | 40 J | Energy per pulse decides how much section you can fuse in one shot. |
| Pulse frequency | 1–100 Hz | Higher rates suit continuous inline work; lower rates suit deeper single welds. |
| Cooling | Built-in cooling | Determines duty cycle and whether a separate chiller is needed on site. |
Where it fits in a workshop
The source is installed beside the chain machine and shares the line's duty cycle, so its cooling method and power draw matter as much as its pulse energy. It pairs with the chain making machines in the same range.
- Production line duty — continuous running as part of a chain cell.
- Findings assembly — welding clasps, jump rings, posts and bails.
Installation and site requirements
Most delayed commissionings come down to three things: the supply, the cooling and the route into the room. Check these against the site before the machine ships.
- Electrical supply — this machine expects AC 220±10% 50/60Hz. Confirm the socket, the breaker rating and whether the site is 50 Hz or 60 Hz.
- Power draw — 8 kW. Size the circuit for continuous, not peak, operation.
- Cooling — Built-in cooling. No separate chiller position is required.
- Footprint — 35 × 123 × 115 mm. Allow clearance behind and beside the machine for service access.
Operator handover covers the software, the parameter set for the specific alloy and wire in use, and the first production run. If any of the figures above sit close to your limits, say so on the quotation request and we will confirm before the order is placed.
How the YAG-150W compares
Other yag chain welding source models in the range, so you can see where this one sits rather than reading its specification in isolation.
| Model | Power | Wire / field | Cooling | Weight |
|---|---|---|---|---|
| YAG-150W this page | 150 W | — | Built-in cooling | — |
| YAG-80W | 80 W | — | Built-in cooling | — |
Overview
The YAG-150W is a yag chain welding source built for welding / repair in jewelry manufacturing, supplied by Sawyers Jewelry. A 150 W YAG chain welding source for higher-throughput inline link welding. It is designed for reliable daily production with consistent, repeatable results.
Key Capabilities
- Laser power: 150 W (YAG)
- Cooling: Built-in cooling
Typical Applications
The YAG-150W is well suited to full chain production line and findings & clasp welding. Settings can be adapted to your metal mix and output requirements.
Supported Metals
The machine processes gold, silver, stainless steel and brass. Working within the rated wire range protects link consistency and extends machine life.
Ordering & Support
Sawyers Jewelry supplies the YAG-150W with options for voltage and tooling, plus export documentation and after-sales support. Use the inquiry form on this page for a tailored quotation.
